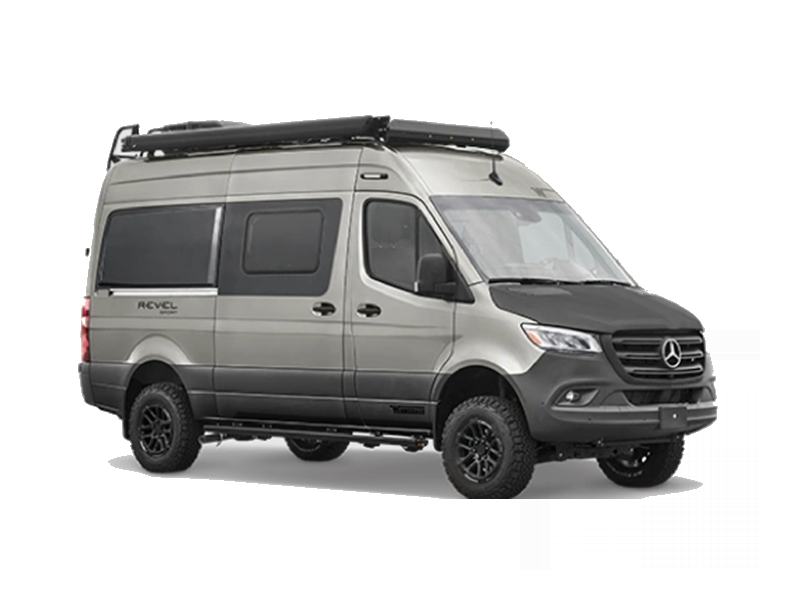

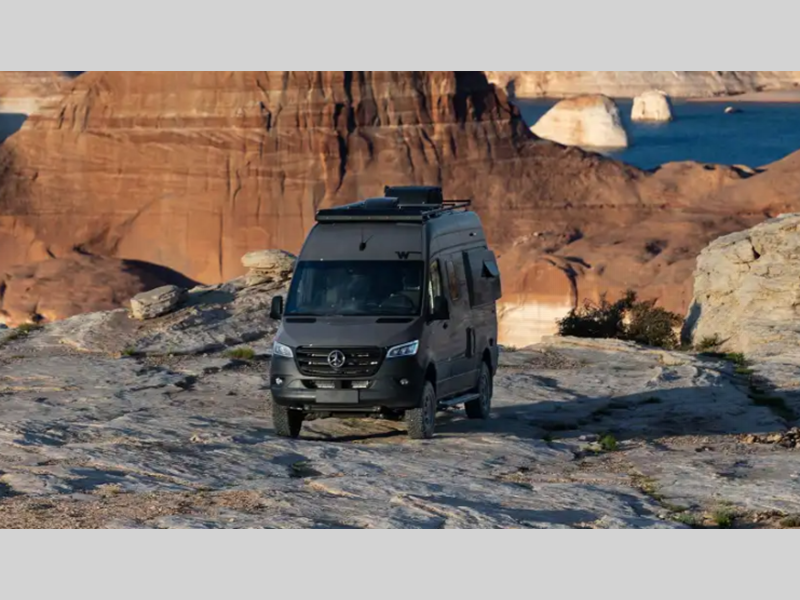

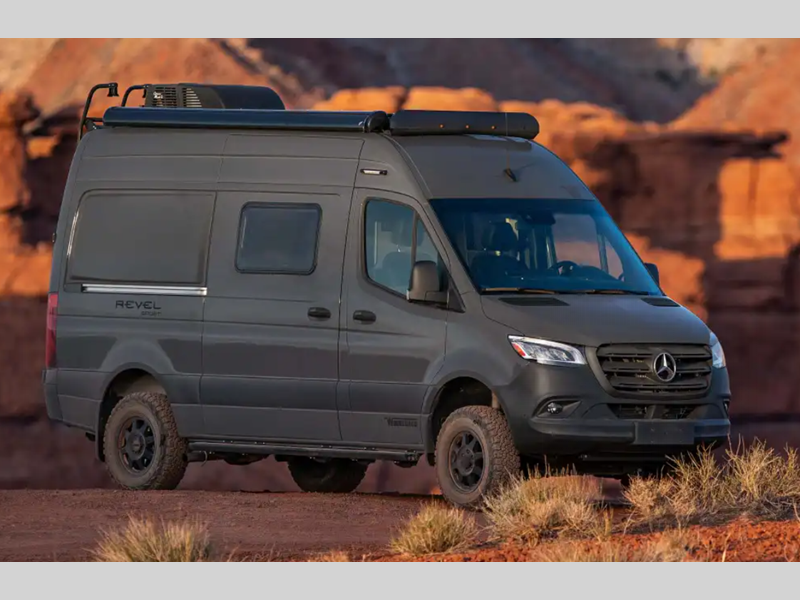

The Revel Sport by Winnebago is the outdoor enthusiasts dream come true! This Class B diesel camper van features boondocking amenities, including off-grid power and off-road performance for unforgettable adventures!

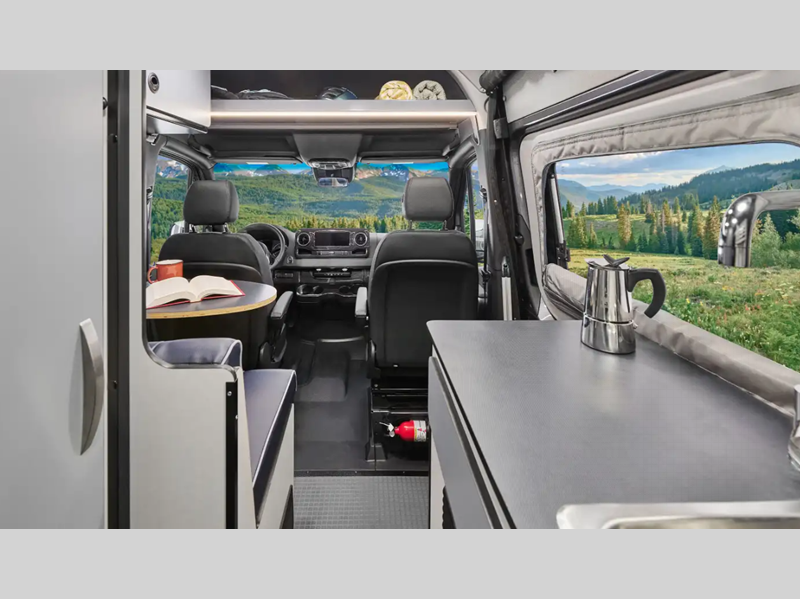

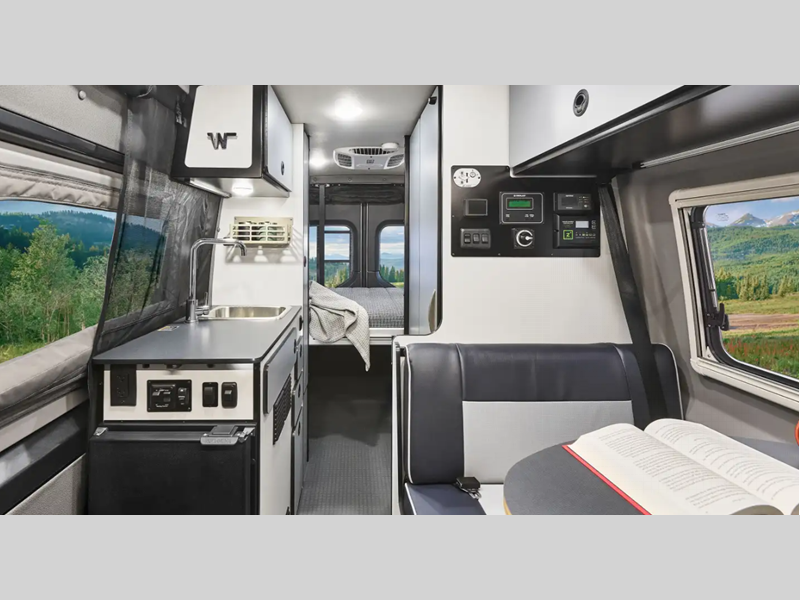

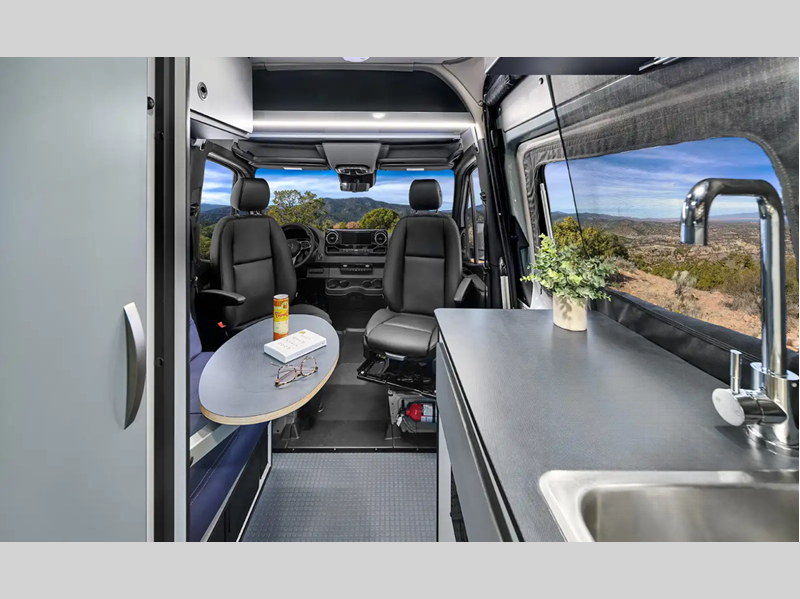

The interior of the Revel Sport is designed for comfort with lounge seating with a removable table, heavy duty vinyl flooring, and a versatile living space. Since this van features a power lift bed, you can utilize this space as a gear garage during the day. The exterior is just as accommodating with its luggage rack, movable ladder, side and rear screen doors, plus more!



Start a new adventure with the Revel Sport Class B diesel motorhome by Winnebago!

  • Specifications

    Sleeps 2
    Length 19 ft 7 in
    Ext Width 7 ft 3 in
    Ext Height 10 ft
    Int Height 6 ft 3 in
    Interior Color Intrepid

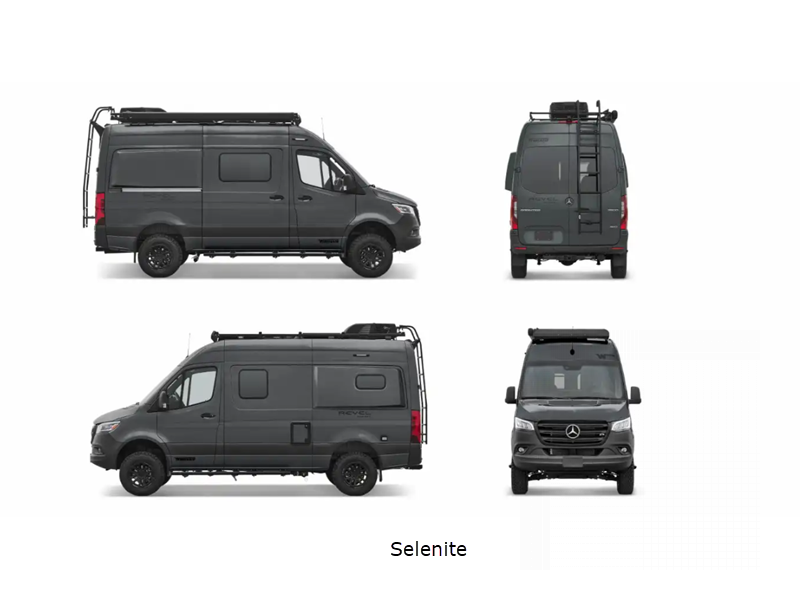

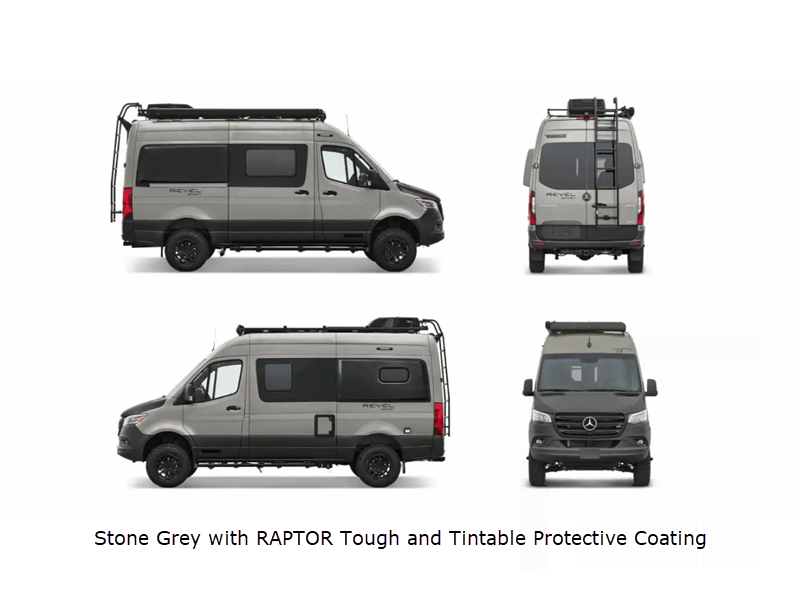

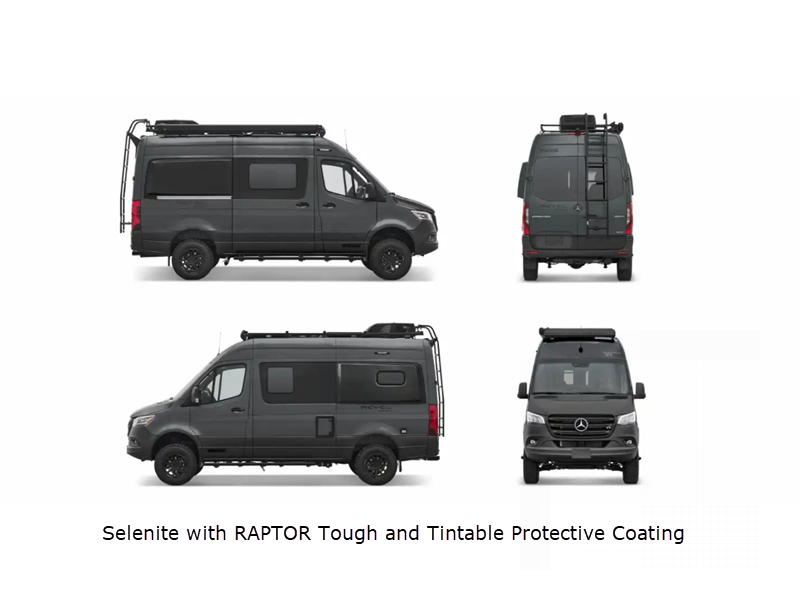

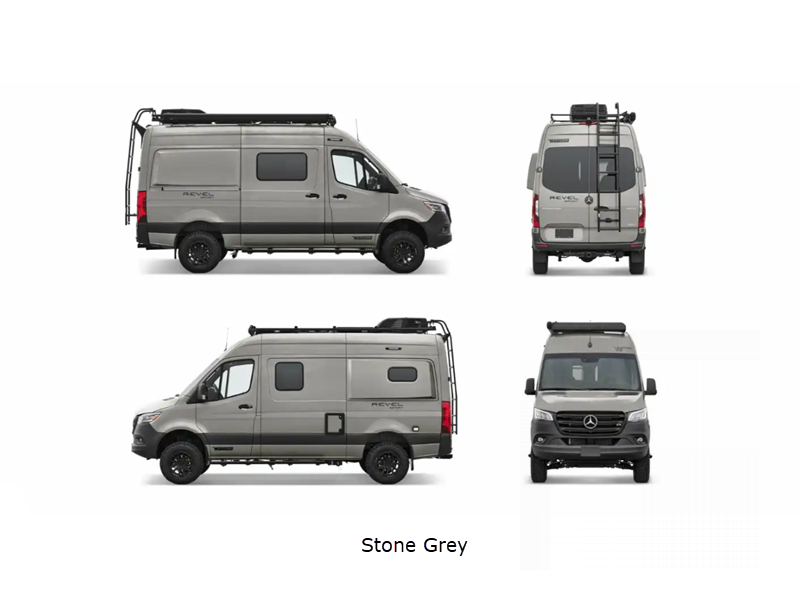

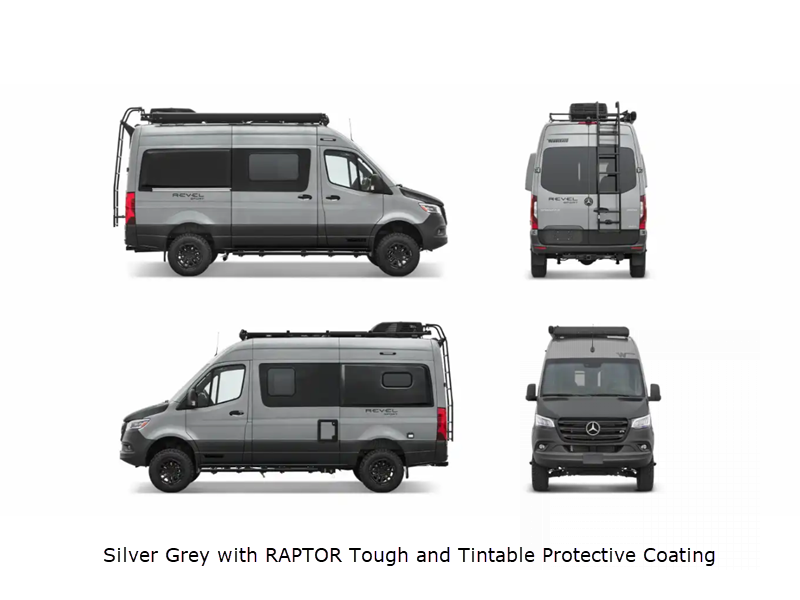

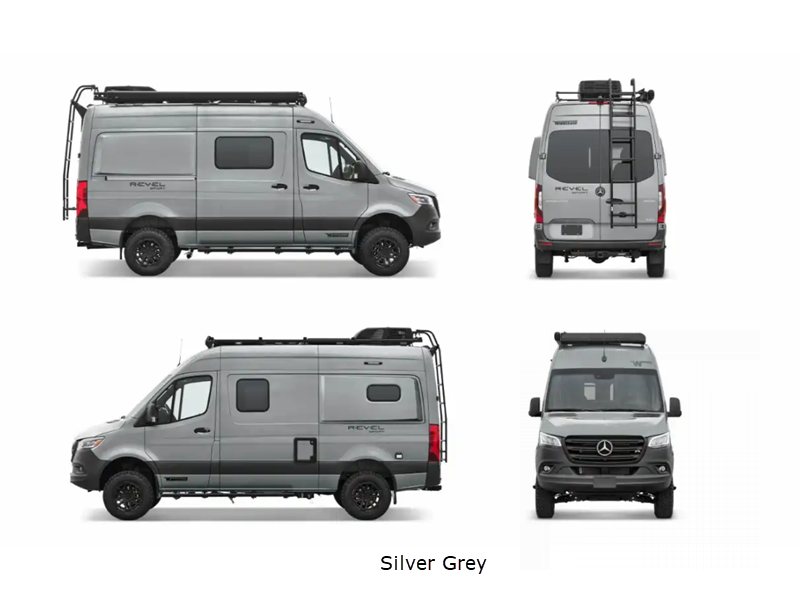

    Exterior Color Silver Grey, Stone Grey, Selenite; With or Without RAPTOR Tough and Tintable Protective Coating
    Hitch Weight 5000 lbs
    GVWR 9050 lbs
    Fresh Water Capacity 24 gals
    Grey Water Capacity 21 gals
    Black Water Capacity 5 gals
    Fuel Type Diesel
    Engine 2.0L High Output Turbo Diesel 4-Cylinder
    Chassis Mercedes-Benz AWD Sprinter
    Fuel Capacity 24.5 gals
    Wheelbase 144 in
    Number Of Bunks 1
    Refrigerator Type 12V Single Door Compressor Driven
    Refrigerator Size 3.0 cu ft
    Cooktop Burners 1
    Axle Weight Front 4409 lbs
    Axle Weight Rear 5359 lbs
    Water Heater Type Hydronic
    Gross Combined Weight 13930 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp
  • Revel Sport 44C

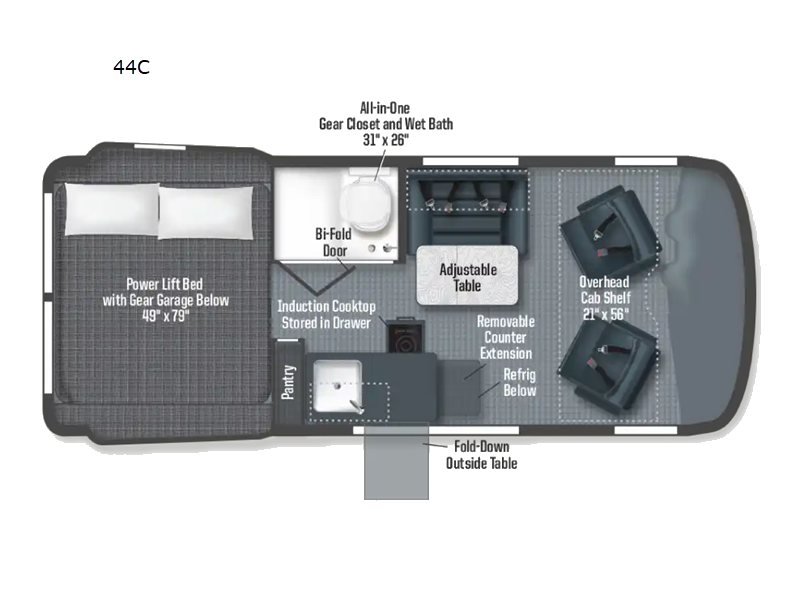

    Revel Sport 44C Floorplan Image

    Winnebago Revel Sport Class B diesel motorhome 44C highlights: Power Lift Bed ... more about Revel Sport 44C

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 19 ft 7 in
    Ext Width 7 ft 3 in
    Ext Height 10 ft
    Int Height 6 ft 3 in
    Interior Color Intrepid
    Exterior Color Silver Grey, Stone Grey, Selenite; With or Without RAPTOR Tough and Tintable Protective Coating
    Hitch Weight 5000 lbs
    GVWR 9050 lbs
    Fresh Water Capacity 24 gals
    Grey Water Capacity 21 gals
    Black Water Capacity 5 gals
    Fuel Type Diesel
    Engine 2.0L High Output Turbo Diesel 4-Cylinder
    Chassis Mercedes-Benz AWD Sprinter
    Fuel Capacity 24.5 gals
    Wheelbase 144 in
    Number Of Bunks 1
    Refrigerator Type 12V Single Door Compressor Driven
    Refrigerator Size 3.0 cu ft
    Cooktop Burners 1
    Axle Weight Front 4409 lbs
    Axle Weight Rear 5359 lbs
    Water Heater Type Hydronic
    Gross Combined Weight 13930 lbs
    Shower Type Wet/Bath Shower
    Electrical Service 30 amp

Revel Sport Features:

Standard Features (2025)



Chassis

  • Mercedes-Benz® AWD Sprinter Chassis 2.0L high-output, turbo-diesel 4-cylinder, 9-speed automatic transmission with overdrive
  • 4-wheel ABS brakes
  • LED high performance headlamps
  • Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight
  • 7-pin trailer wiring harness connector
  • Spare tire

Optional Equipment

  • Customized performance wheels and BF Goodrich® T/A® KO2 all-terrain tires

Cab Conveniences

  • Heated steering wheel
  • MBUX® touchscreen multimedia infotainment system w/navigation, Wi-Fi hotspot, intelligent voice control, and rear camera
  • Mercedes me connect vehicle app
  • Heated cab seats w/single in-board armrest, adjustable lumbar support, adjustable headrest and slide, swivel and recline
  • Airbags driver and passenger
  • 3-point seat belts
  • DISTRONIC PLUS® (adaptive cruise control)
  • Power assist steering w/tilt and telescoping wheel
  • Power mirrors w/defrost and turn signals
  • Power door lock w/remote control
  • Power windows
  • 12-volt powerpoints
  • Sunvisors
  • Applique package
  • Rain sensor w/integrated wet wiper system
  • Auto headlamps w/high beam assist
  • Active braking assist
  • Active lane keeping assist
  • Blind spot assist
  • Attention assist (driver alert)
  • Traffic sign assist
  • Dash charging station (wireless, 12V and USB charge points)
  • Digital rearview mirror
  • Thermal privacy curtain

Electrical System

  • AC/DC load center/converter
  • Coach battery disconnect system
  • Automatic dual-battery charge control
  • 30-amp. SmartPlug® power cord

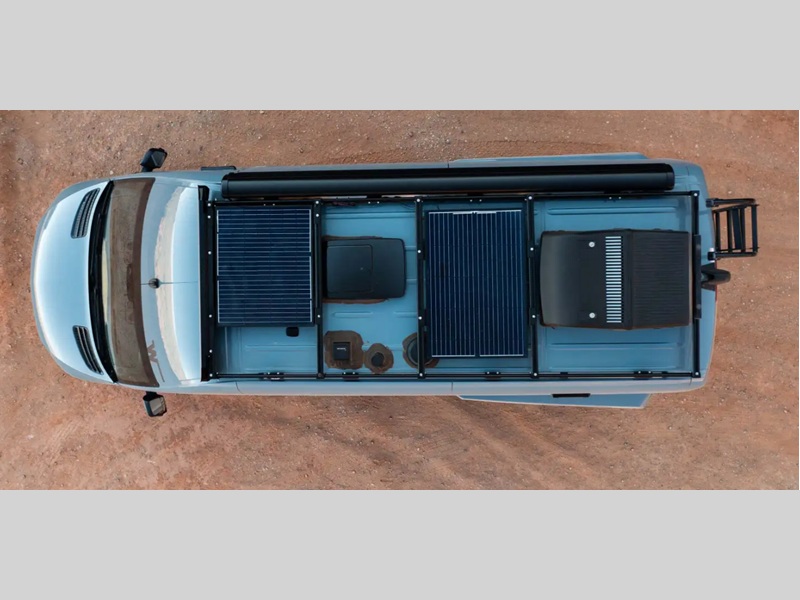

  • Winnebago Power Standard (5kWh EcoFlow® battery, 5-in-1 Winnebago® x EcoFlow® Power Hub Pro (3,600-watt inverter, inverter-charger, DC-DC converter, MPPT solar charger and alternator charger), touchscreen interface, and 210-watts of solar)

Interior

  • LED ceiling lights
  • Tinted dual-pane euro acrylic windows w/cassette shades
  • Front overhead cabinet shelf (cab area)
  • Systems monitor panel
  • Deluxe powered ventilator fan w/rain cover
  • RAM® Tough-Track™ mounts throughout
  • Entry door assist handle w/Ram® Tough-Track™ mount
  • Roof wiring access port
  • Heavy duty vinyl flooring throughout

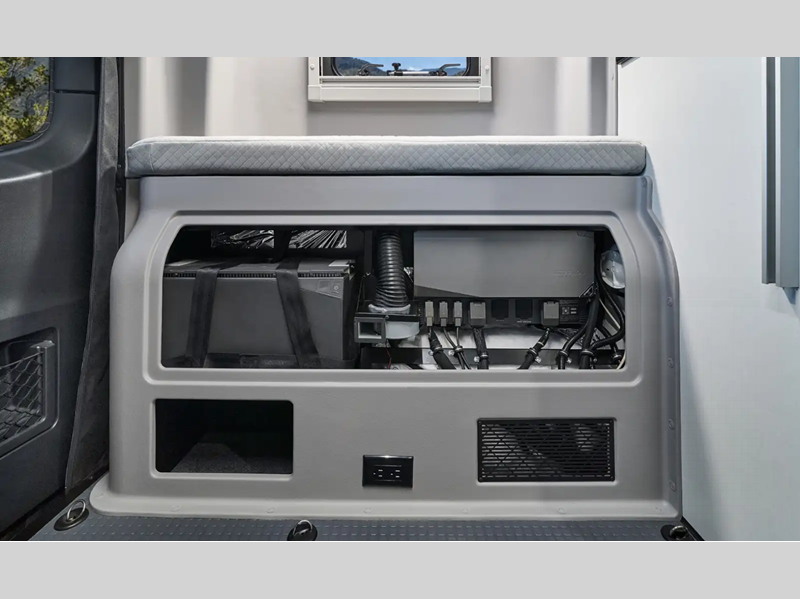

  • Below floor storage (lounge)
  • Forward facing lounge seat w/(1) integrated 3-point seat belt and (1) lap belt (44N)

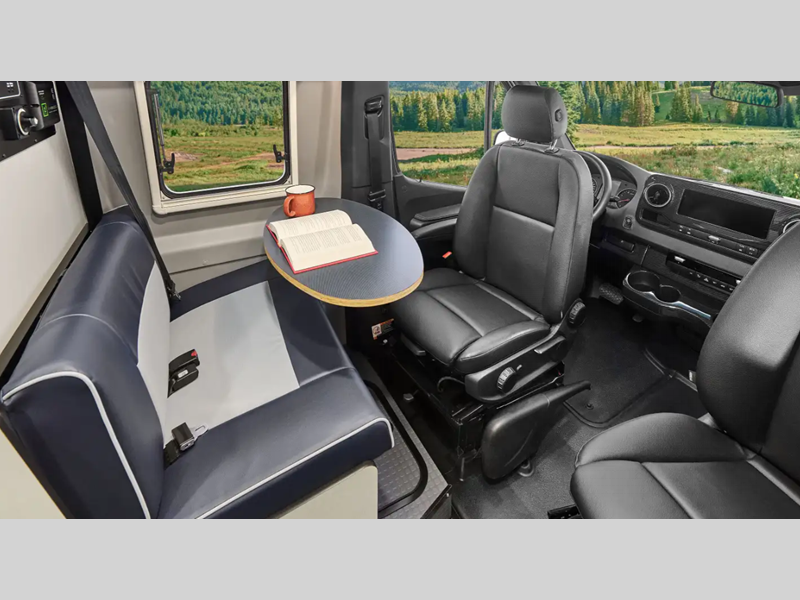

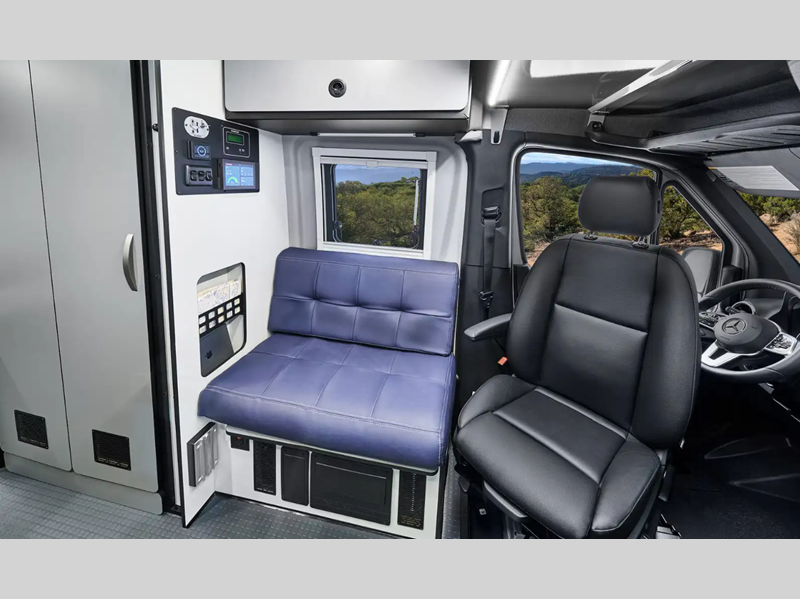

  • Side-facing lounge seat w/integrated lap belts (44C)

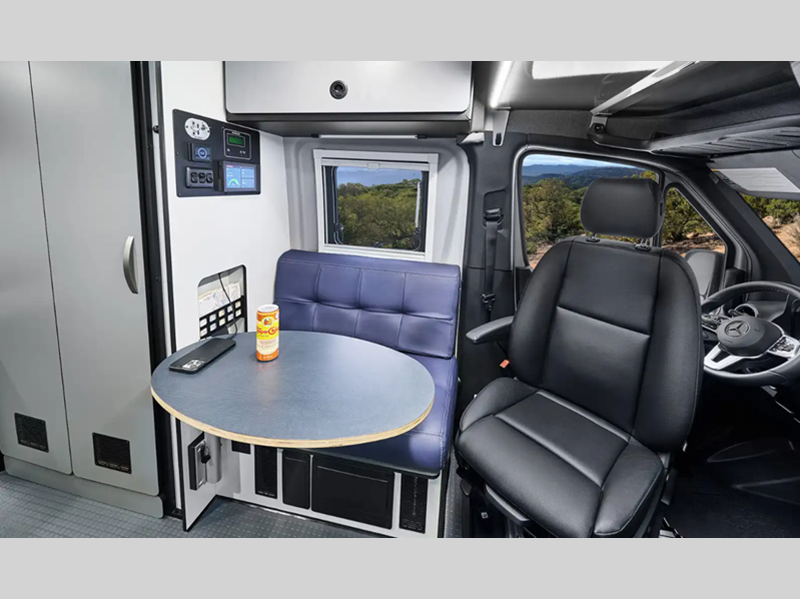

  • Adjustable, removable table (44C)
  • Removable pedestal table (44N)
  • 120V, 12V, and USB charging ports

Optional Equipment

  • 30" x 65" Front cab air mattress w/support base, cordless pump, repair kit and storage bag

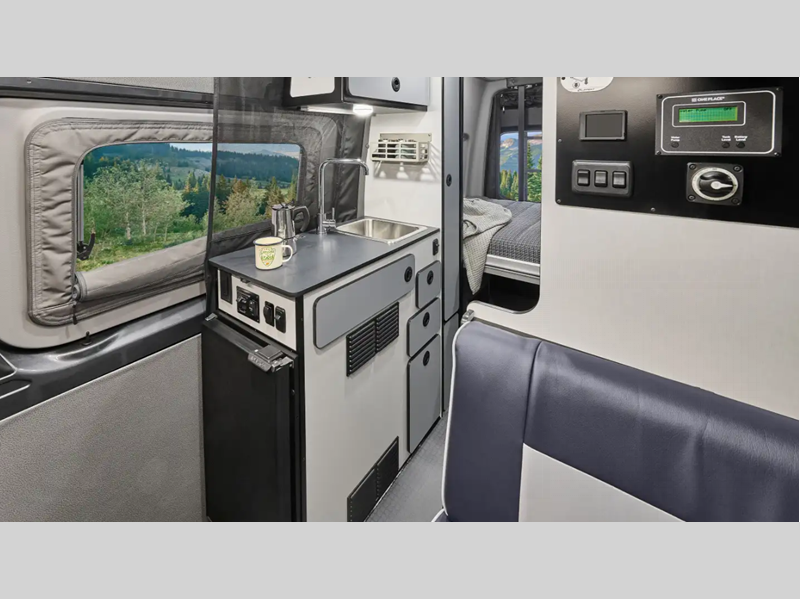

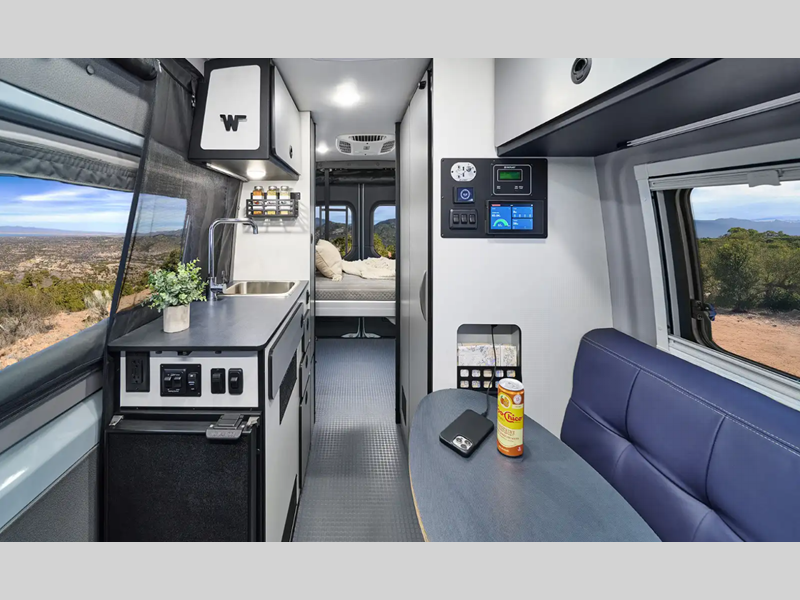

Galley

  • High pressure Laminate countertop
  • Portable single burner induction cooktop
  • 3.0 cu. ft. (12V) single door compressor-driven refrigerator/freezer
  • Spice rack
  • Removable countertop extension
  • Pantry
  • Stainless-steel sink w/single control faucet

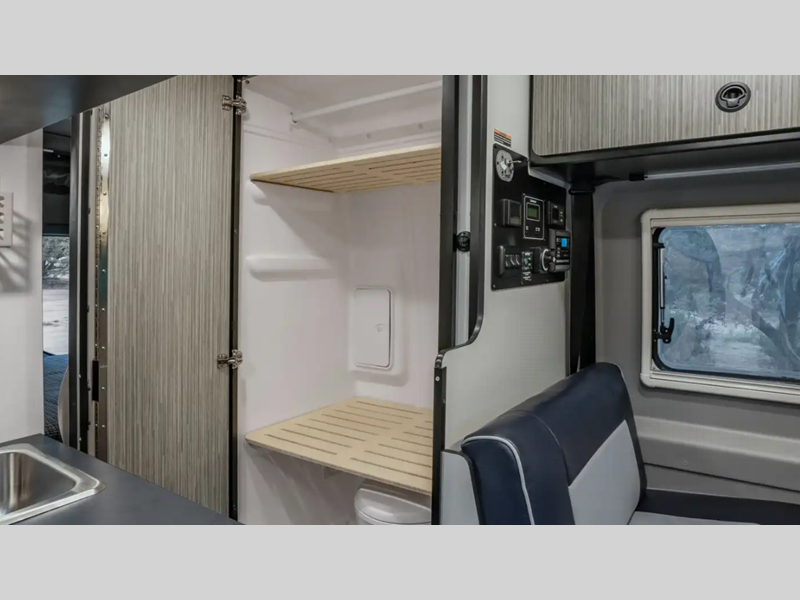

Bath

  • Wet bath 31" x 26"
  • Shower w/wall surround
  • (1) removable shelf
  • Dual control faucet w/flexible shower head
  • Removable clothes rod
  • Powered roof vent
  • Robe hooks
  • Shower curtain
  • Tissue holder
  • Swiveling cassette toilet
  • Bi-fold bath door

Bedroom

  • Powered roof vent w/rain cover (NA w/air conditioner)
  • Reading lights
  • Power lift bed and molded pockets w/zip storage below

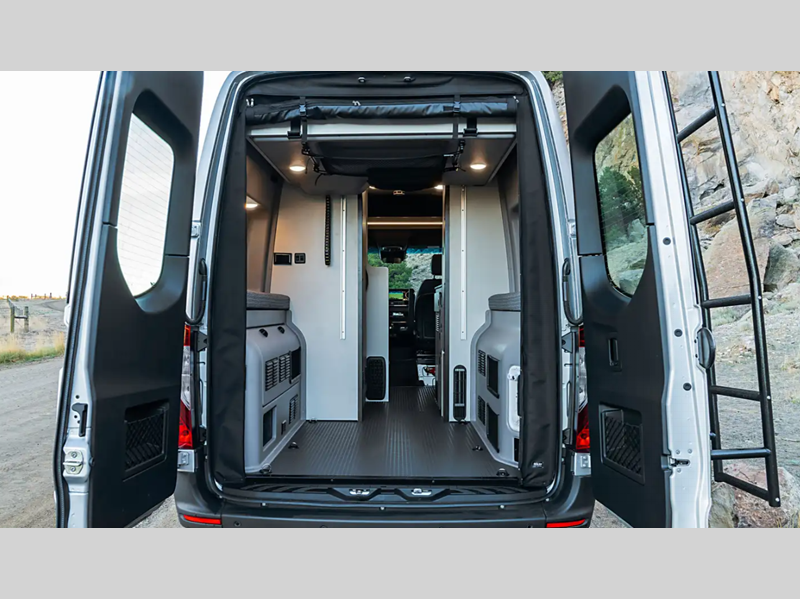

  • Under-bed gear garage storage w/D-ring attachment points

Exterior

  • Side screen door w/magnetic closure
  • Rear screen door w/blackout panel
  • Porch light w/interior switch
  • Driver side service light w/interior switch
  • Fold-down exterior table
  • Rear mud guards
  • Movable ladder
  • Luggage rack
  • Aluminum running boards w/ground effect lighting, clearance lighting, integrated pet leash attachment and rubber trim

Optional Equipment

  • Rack mounted powered patio awning w/Bluetooth® control

Heating & Cooling System

  • Hydronic heating system w/LED touchscreen panel

Optional Equipment

  • 13,500 BTU air conditioner

Plumbing System

  • Water center control panel includes all control valves, connection points and exterior wash station (located inside right rear door)
  • 10' sewer hose
  • On-demand water pump
  • Heated gray water holding tank (below floor)
  • Heated freshwater holding tank
  • Galley drain pump
  • Winterization package w/labeled valves, courtesy lights and siphon tube

Safety

  • LP, smoke, and carbon monoxide detectors
  • Fire extinguisher
  • Ground fault interrupter

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
